230V 10″ SLIDING MITRE SAW WOOD 2000W Ø 255mm SCHEPPACH HM254

Features

• Length: 25.5
• Width: 9.0
• Height: 59.0
• Weight: 14.3
• Power: 2000.0
• Rotational speed: 2000.0
• Noise level: 2.0
• Material: Wood
• Shape: Hexagonal
• IP rating: 1X
• Working width / diameter: 25.5
• Disc diameter, blade diameter: 25.5
• Power supply: Electric
• Starting the thermal engine: Manual
• Angle, tilt: 45.0
• Saw type: Disc cutter
• Type of cut: Blade
• Cutting depth: 25.5
• Eco responsibility: Connected

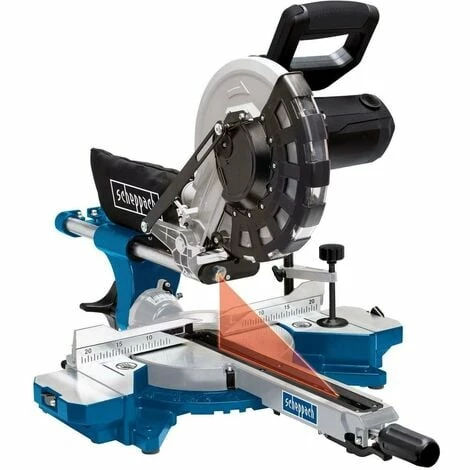

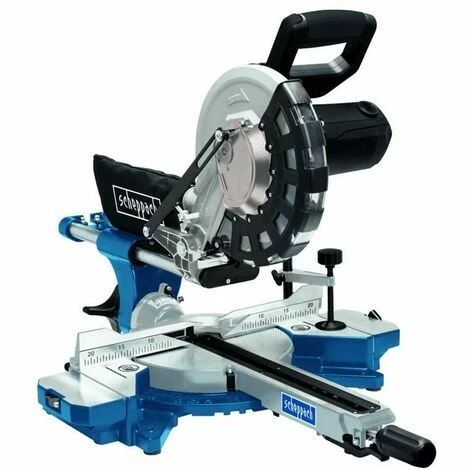

MITRE SAW SCHEPPACH HM254

The “Scheppach HM254” sliding compound mitre saw is perfect for general daily diy use.
Ideal for mitre, bevel and compound angle cuts, this compound mitre saw from Scheppach features a dual slide rail.
Designed to be versatile in application, it accurately and precisely cuts processed timbers, plastic, hard and soft wood.

• Lightweight die cast aluminium design for easy transport
• Powerful 2000 W motor provides various cutting applications
• Compact bench top design fits conveniently in small shop environments
• Die cast aluminium table for long-lasting durability
• The 60 teeth carbide tipped blade stays sharp and makes clean cuts

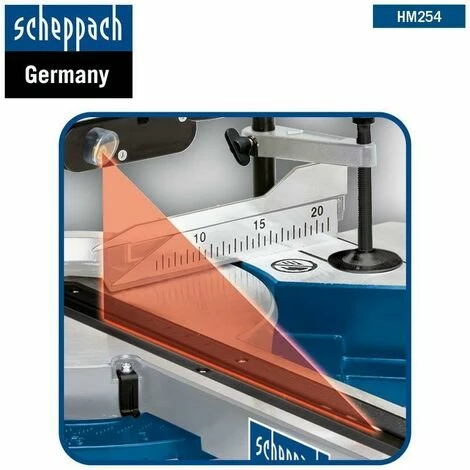

• Standard laser provides high visibility for precision cutting
• Big cross cutting width up to 340 mm
• Fully enclosed blade guard for operator safety

Technical data:

Dimensions L x W x H: 770 x 595 x 590 mm
Blade: Ø 255 mm
Blade speed: 4500 rpm
Turn table: Ø 248 mm
Bevel type: 1 x 45°
Mitre capacity: 45° left
Cross cut at 90°: 340 x 90 mm
Mitre cut at 45°: 240 x 90 mm
Bevel cut at 45°: 340 x 45 mm
Compound cut at 45°: 240 x 45 mm
Motor: 220 – 240 V~ / 50 Hz
Input: 2000 W
Weight net / gross: 14.3 / 17.5 kg
Packaging dimensions: 815 x 480 x 405 mm
