230V 8″ SLIDING MITRE SAW WOOD PLASTIC ALLUMINIUM STEEL Ø 216mm SCHEPPACH HM90MP

Features

• Length: 34.0
• Width: 6.5
• Height: 35.5
• Power: 1700.0
• Rotational speed: 4700.0
• Material: Plastic
• Saw type: Miter
• Type of cut: Blade

230V 8″ SLIDING MITRE SAW WOOD PLASTIC ALLUMINIUM STEEL Ø 216mm SCHEPPACH HM90MP

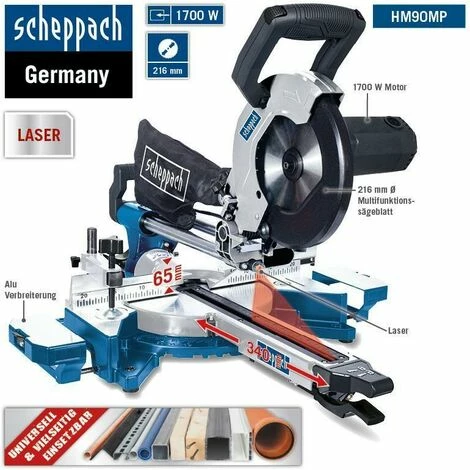

Thanks to the adjustable cutting speeds, the scheppach mitre saw is a truly universal device. With the 216 mm Ø multifunction saw blade it is able to cut effortlessly through many different materials, such as soft and hard wood, timber spiked with nails, plastics, copper, aluminium and even steel.

• 2 cutting speeds for optimum setting to a wide range of materials
• Multifunction saw blade 216 mm Ø with 24 teeth
• Cutting performance of 340 x 65 mm
• Screw clamp system for a stable grip of the workpiece during all mitre, chop and cross cuts
• High workpiece stop made from pressure die-cast aluminium for optimum positioning and sawing
• Two pull-out workpiece supports made from pressure die-cast aluminium with integrated and fold-out workpiece stop
• Durable saw blade guard made from pressure die-cast aluminium
• Including laser for precisely marking the cutting edge
• Precise cuts due to stable double column guide
• Including carrying handle on the rear for ease of transport

SPECIFICATIONS
Dimensions L x W x H 790 x 460 x 355 mm
Blade Ø 216 mm
Blade speed 4700 rpm
Turn table Ø 260 mm
Bevel type 1 x 45°
Mitre capacity 47° left / -47° right
Cutting width/height: 90° / 90° 340 x 65 mm
Cutting width/height: 90° / 45° 340 x 38 mm
Cutting width/height: 45° / 90° 240 x 65 mm
Cutting width/height: 45° / 45° 240 x 38 mm
Engine 220 – 240 V~
Engine output 1700 W
