230V AIR PLASMA CUTTER MACHINE UP TO 12 MM SCHEPPACH PLC40

Features

• Weight: 6.0
• Voltage: 230.0
• Amperage: 15.0
• Frequency: 50.0
• Pressure: 4.5
• Shape: Right
• Hose length: 37.5
• Cutting thickness: 12.0
• Eco responsibility: Connected

230V AIR PLASMA CUTTER MACHINE UP TO 12 MM SCHEPPACH PLC40

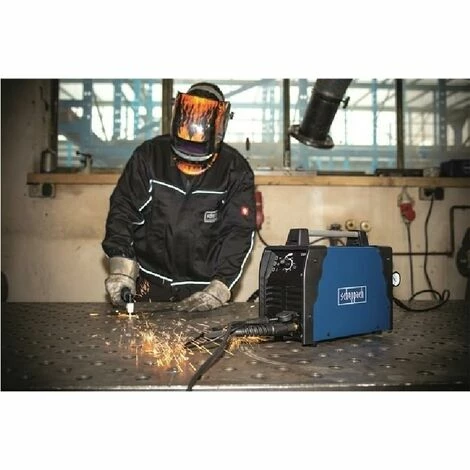

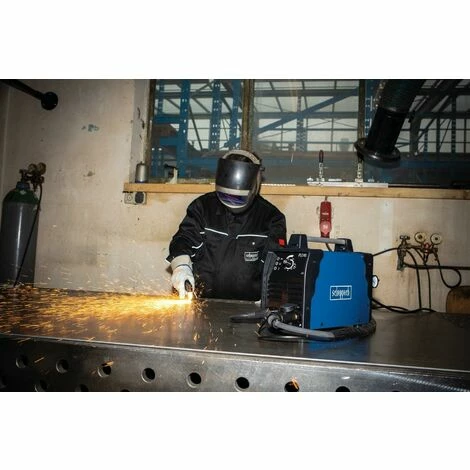

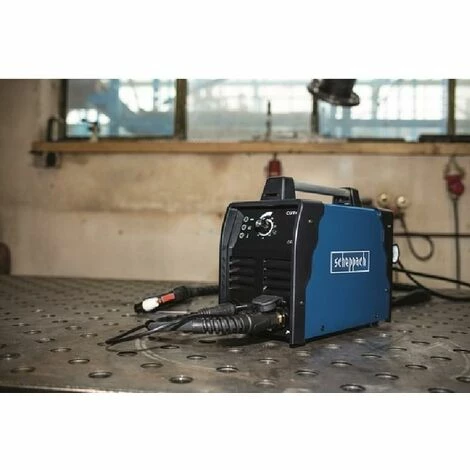

The PLC40 from Scheppach is a powerful and compact plasma cutter with a stable plasma jet and a cutting performance of max. 12 mm.
It can be used for a straight and curved cutting operations on steel panel, stainless steel, aluminium, and copper.
A compressed air hose with quick connecting system, 3 nozzles and 3 electrodesare already included in the scope of delivery and enable a quick start-up.

– Low weight. ideal for mobile use
– Powerful compact device with robust housing and carrying handle
– For precise and clean through-cutting operations up to a material thikness of 12 mm
– Can be used for straight and circular cutting oparations on copper, stainless steel, aluminium, iron, and steel
– Freely adjustable cutting current (from 15 to 40 A)
– High-quality 2.5 m cutting cable with replaceable torch attachments
– 2 m grounding cable with a strong clamp
– Compressed air hose with quick connecting system
– Compatible with industry-standard compressors
– Including 3 nozzles, 3 electrodes (1 pre-assempled each) and compress air hose with quick connecting system.

Technical data:

Dimensions L x W x H: 375 x 169 x 250 mm
Cutting current: 15 – 40 A
Mains connection: 230V / 50 Hz
Cutting performance (depending on material):
Copper: 1 – 4 mm
Stainless steel 1 – 8 mm
Aluminium 1 – 8 mm
Iron 1 – 10 mm
Steel 1 – 12 mm
Working pressure 4 – 4.5 bar
Weight net / gross 6/7.4 kg
Packaging dimensions 435 x 272 x 305 mm
