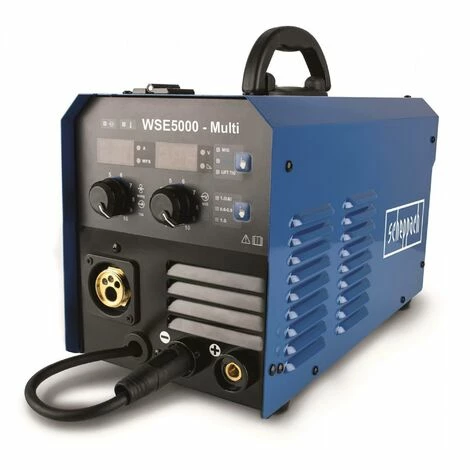

230V DIGITAL MULTI WELDING MACHINE 200 A SCHEPPACH WSE5000Multi

Features

• Weight: 9.0
• Power: 20.0
• Voltage: 230.0
• Amperage: 200.0

230V DIGITAL MULTI WELDING MACHINE 200 A SCHEPPACH WSE5000Multi

Four welding processes in one device – the WSE5000 multi welding device from scheppach combines WIG (TIG), MIG/MAG, MMA and cored wire welding.
It is possible to easily select the desired welding process, to continuously adjust the current and to exactly determine the welding current and voltage via a digital display.
Thanks to various welding processes, secure and permanent connections can be achieved with a wide variety of materials such as aluminium, steel or stainless steel.

• 230 V welding machine for cored wire, MIG (160 A), MMA (140 A) and TIG (200 A) welding processes
• For welding stainless steel, steel, iron, and aluminium
• Peak current of 200 A
• Continuously adjustable current with digital display for welding current (A) and voltage (V)
• Including cored wire automatic feed
• MIG burner with 2.5 m hose assembly (TIG hose assembly optionally available)
• Including two welding nozzles each with 0.6 and 0.8 mm, 5 MMA welding electrodes, 2 x 0.45 kg cored wire spools, welding mask and slag hammer with wire brush

Technical data

Dimensions L x W x H 415 x 203 x 272 mm
Appropriate electrodes 1,6 – 3,2 mm
Operating current MIG 30 – 160 A
Operating current MMA 10 – 140 A
Operating current TIG 10 – 200 A
No-load voltage 76 V
Mains voltage 230 V~ / 50 Hz
Weight net / gross 6.4 / 9 kg
Packaging dimensions 505 x 280 x 335 mm
