Features
- Length: 34.0
- Width: 6.5
- Height: 6.5
- Weight: 12.0
- Power: 2000.0
- Rotational speed: 4800.0
- Material: Wood
- Working width / diameter: 21.0
- Disc diameter, blade diameter: 21.0
- Power supply: Thermal
- Angle, tilt: 0.0
- Saw type: Miter
- Type of cut: Blade
- Cutting depth: 21.0

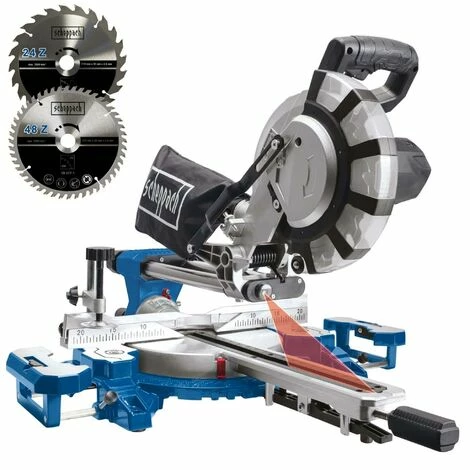

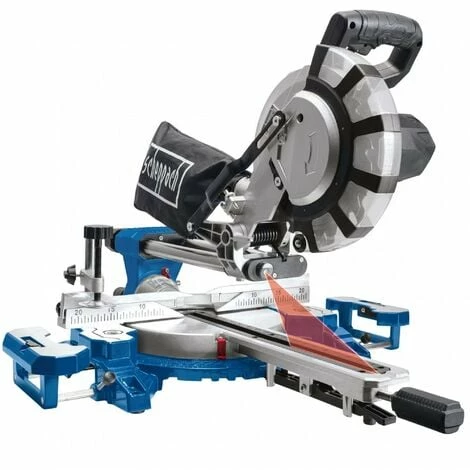

WOOD MITRE SAW INCLUDING 2ND SAW BLADE 2000W Ø 210 MM SCHEPPACH HM216SPX
Scheppach’s powerful mitre saw HM216SPX is an excellent choice for demanding do-it-yourselfers. The stable double column guide and the 210 mm carbide saw blade enable a wide range of accurate crosscuts and mitre cuts in hard and soft wood as well as in all common plastics.
Thanks to a rotary plate, an integrated laser and a saw blade which can be tilted by 45°, cuts can be precisely adjusted and performed.
• Stable and lightweight mitre saw with double column guide
• Powerful 2000 W motor
• Durable die-cast aluminium frame

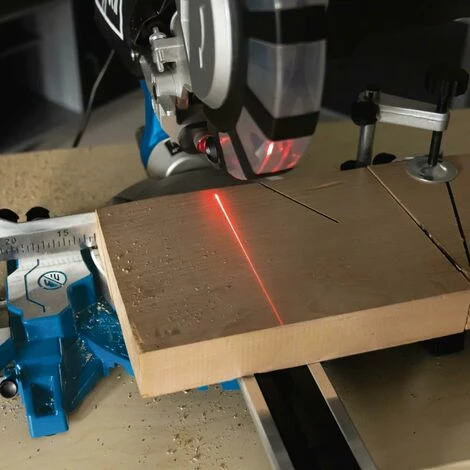

• Built-in laser for exactly marking the cutting edge
• A large cutting width range up to 340 mm and a cutting height of 65 mm at 90°
• Fully enclosed saw blade guard for maximum work safety
• Includes an integrated extraction system for a dust-free work area
• Carbide saw blade with 24 teeth, ideal for longitudinal cutting of soft wood (pre-assembled)
• plus carbide saw blade with 48 teeth for precise and clean longitudinal and primarily transverse cutting of solid wood
• including two laterally adjustable workpiece supports made of aluminium to enlarge the support surface
Technical data
Dimensions L x W x H approx. 735 x 705 x 500 mm
Saw blade Ø 210 mm / 24 teeth
Saw blade speed 4800 rpm
Tilt angle from 0° to 45°
Mitre angle from -45° to +45°
Cutting width/height: 90° / 90° 340 x 65 mm
Cutting width/height: 90° / 45° 240 x 65 mm
Cutting width/height: 45° / 90° 340 x 38 mm
Cutting width/height: 45° / 45° 240 x 38 mm
Motor power 2000 W
Weight net / gross 12.15 / 14.5 kg
Packaging dimensions 790 x 460 x 355 mm
